Welcome

Qodly Studio is an interface builder for web applications. It provides developers with a graphical page editor to design applications running in web browsers or smartphones. It supports natively the ORDA objects.

You can use Qodly Studio directly from your 4D environment to build modern and sophisticated interfaces that you can easily integrate to your existing 4D projects and deploy on premise.

Qodly Studio can also be used in the Qodly Cloud platform, dedicated to the development of web business applications (see the Qodly Cloud section of the documentation for more information).

Qodly Studio proposes a full-featured web UI, allowing you to:

  • create Qodly pages by placing components on a canvas
  • map components to Qodly Sources
  • trigger 4D code by configuring events
  • and much more.

Configuration​

Requirements​

Browser​

Qodly Studio supports the following web browsers:

  • Chrome
  • Edge
  • FireFox

The recommended resolution is 1920x1080.

Project​

Qodly Studio only works with 4D projects (binary databases are not supported).

  • Web sessions (aka Scalable sessions) must be enabled.
  • The 4D code called by Qodly forms must be thread-safe.

Web Server & WebAdmin Server​

Qodly Studio is served by the WebAdmin web server and access data from 4D projects exposed as REST servers and handled by the 4D web server. All these servers must be launched. If one of these levels are not enabled, access to Qodly Studio is denied (a 403 page is returned).

You need to enable access to Qodly Studio on the WebAdmin web server. This setting applies to the 4D application (4D or 4D Server) on the host machine. All projects opened with that 4D application take this setting into account.

In addition, you need to explicitly designate every project that can be accessed. The Enable access to Qodly Studio option must be enabled on the Web Features page of the 4D application's Settings. Keep in mind that user settings can be defined at several levels, and that priorities apply.

One-click configuration​

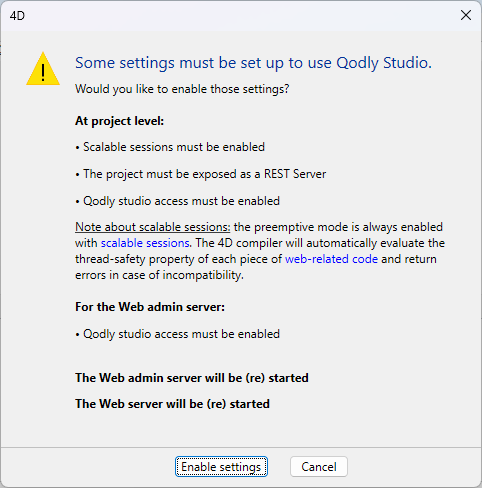

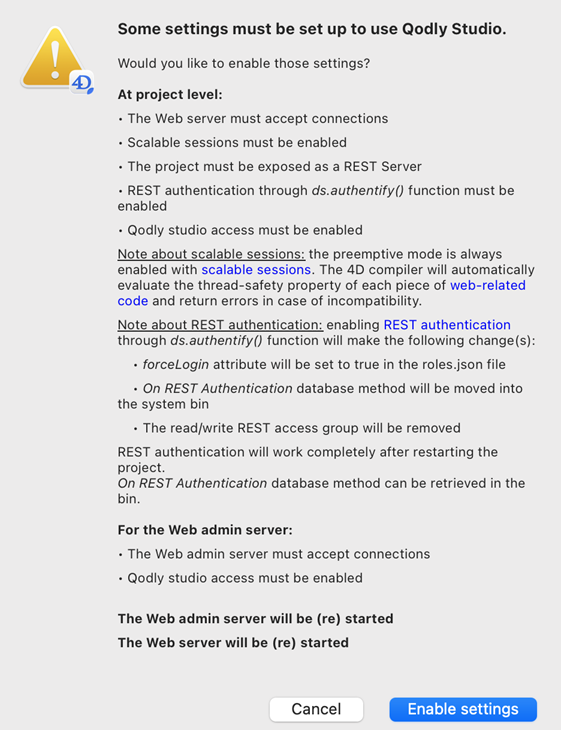

All the configuration requirements can be automatically set for you in one click when you select the Qodly Studio... menu command from the Design menu in 4D single-user for the first time. Any requirements that are not met are listed in a dialog box and will be automatically adjusted if you click the Enable settings button.

alt-text

note
  • Only settings that need to be edited are listed in the dialog box.
  • Since scalable sessions run in preemptive mode, enabling this setting might require that you evaluate the thread-safety property of your code.

Activating authentication​

Authentication on the WebAdmin web server is granted using an access key. For more details, see Access key.

In case of access through 4D, an access key is transparently provided.

Development and deployment​

In accordance with the management of 4D projects, only the following usages are supported:

  • development with Qodly Studio must be done using 4D (single-user).
  • deployment of 4D applications powered with Qodly pages must be done using 4D Server.
warning

You can open Qodly Studio, debug and edit Qodly pages directly on a 4D Server machine when a project is running in interpreted mode. This feature is only provided for testing and debugging purposes, for example to evaluate the application flow with actual data, or in multi-user environment. It must NOT be considered as a regular way to develop applications since it does not provide any control over concurrent accesses.

Opening Qodly Studio​

The Qodly Studio page is available when all requirements are met.

There are two ways to access Qodly Studio:

  • by selecting the Qodly Studio... menu command from your 4D application,
  • by entering directly an url in a browser.

From a 4D application​

Select the Qodly Studio... menu command from the Design menu (4D single-user) or the Window menu (4D Server).

Depending on the WebAdmin web server configuration, your default browser opens at IPaddress:HTTPPort/studio or IPaddress:HTTPSPort/studio.

note

When opening Qodly Studio from your 4D single-user application for the first time, you can benefit from the one-click configuration dialog box to automatically configure all necessary settings.

On a browser​

When opening Qodly Studio on a browser, you need to make sure all necessary requirements have been configured.

with the WebAdmin web server running (launched from 4D or 4D Server), enter the following address:

IPaddress:HTTPPort/studio

or:

IPaddress:HTTPSPort/studio

For example, after launching a local web server on port 7080, type this address in your browser:

localhost:7080/studio

You will then be prompted to enter the access key to access Qodly Studio.

Developing with Qodly Studio​

Language​

The following commands and classes are dedicated to the server-side management of Qodly pages:

  • Web Form command: returns the Qodly page as an object.
  • Web Event command: returns events triggered within Qodly page components.
  • WebForm class: functions and properties to manage the rendered Qodly page.
  • WebFormItem class: functions and properties to manage Qodly page components.

Using project methods​

We recommend using class functions over project methods. Only class functions can be called from components. However, you can still use your project methods in Qodly Studio in two ways:

  • You can call your methods from class functions.
  • You can directly execute your methods from the Qodly Explorer.

Offline use​

You can develop with Qodly Studio while your computer is not connected to the internet. In this case however, the following features are not available:

  • Templates: the Template library is empty
  • UI tips: they are not displayed when you click on alt-text icons.

Enabling rendering​

Qodly Studio encapsulates Qodly pages, including layout, data connections, and event-driven logic, in a structured JSON file. This JSON file is processed on-the-fly by the Qodly renderer to serve a fully functional web page.

info

See this page for detailed information on how to render Qodly pages in Qodly.

To enable the rendering of Qodly pages, the following options must be set.

note

Renderer buttons are not available if the configuration options are not activated.

Scope of Qodly forms​

When rendering Qodly forms in the Qodly Studio, the renderer will connect to the 4D web server through HTTP or HTTPS, depending on the settings, following the same HTTP/HTTPS connection pattern as for the 4D WebAdmin web server. See also this paragraph about URL schemes and license usage.

Keep in mind that Qodly Studio runs through the 4D WebAdmin web server. When you use Qodly Studio as a developer, even when you preview a Qodly Page in the studio, you're using the 4D WebAdmin web server. This allows you to see dataclasses, functions and attributes that are not exposed as REST resources for example (they are greyed out).

However, page rendering happens outside Qodly Studio, and is served by the standard 4D web server. In this situation, your web application cannot access assets that are not exposed as REST resources. See Exposed vs non-exposed functions and Exposing tables for more information on how to expose assets.

Accessing Qodly pages​

For deployment, the WebAdmin server is not necessary. End-user access to your web application made with Qodly Studio is based on the 4D REST protocol, and as such, it works as through a conventional 4D remote application.

Your Qodly pages are available through the following url:

IP:port/$lib/renderer/?w=QodlyPageName

...where IP:port represents the address of the web server and QodlyPageName is the name of the Qodly page.

For example:

https://www.myWebSite.com/$lib/renderer/?w=welcome

Preview Qodly Application​

You can preview your Qodly application at any moment by selecting the Preview Qodly Application... command in the Windows menu (4D Server) or in the Design menu (4D single-user).

This command launches the Qodly renderer on a local address in your default browser and displays the start page defined in the Application settings of Qodly Studio.
