Web Event

Web Event : object

Parameter	Type		Description
Result	Object	←	Information on the triggered event

Description

Web Event returns an object with information on a triggered event linked to a web page component.

The command must be called in the context of a web page handled by the 4D web server.

Result

The returned object contains the following properties:

Property		Type	Description
caller		string	Server-side reference of the component triggering the event
eventType		string	Type of event: onblur onfocus onclick onauxclick onmouseenter onmouseleave onkeyup onkeydown onchange unload onload - triggered when the Page loads
data		object	Additional information depending on the involved component
	index	number	Tabs component: index of the tab (indexing starts at 0) Data Table component: column number
	row	number	Data Table component: row number
	name	string	Data Table component: qodlysource name of the column (e.g. "firstname", "address.city")

Example

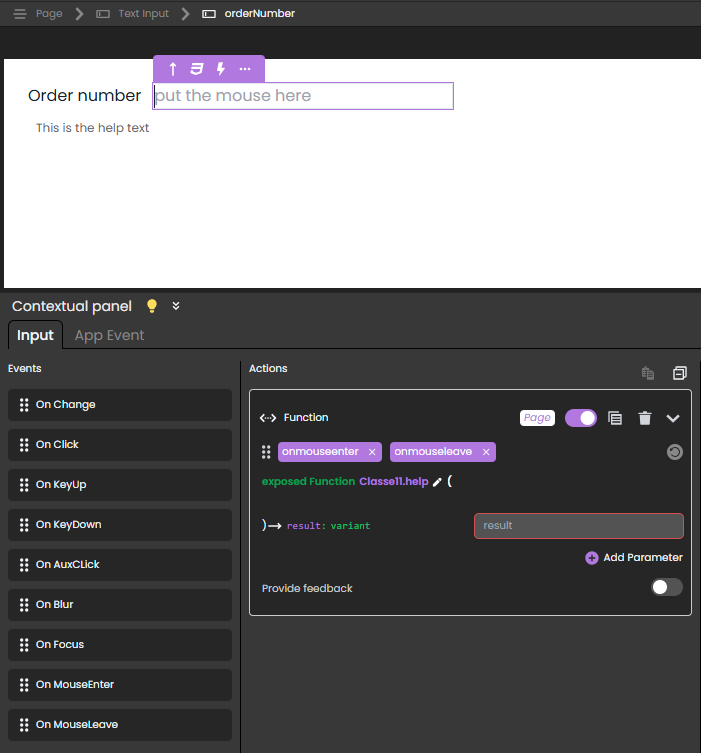

The objective is to display/hide a help text when the user hovers over the component:

This is done by attaching onmouseenter and onmouseleave events to a Text input component that displays the information stored in a Text component (displaying "This is the help text").

In this scenario:

• The Text input component has orderNumber as Server side reference.
• The Text component has helpOn_orderNumber as Server side reference.
• The exposed function help() is attached to both the onmouseenter and onmouseleave events and contains the following code:

shared singleton Class constructor()
exposed Function help()

	var event : Object
	var myForm : 4D.WebForm
	var componentRef : Text

	myForm:=web Form
	event:=web Event
	componentRef:=event.caller

	Case of
		: (event.eventType="onmouseenter")  // event is onmouseenter
			myForm["helpOn_"+componentRef].show()  // show the help on "orderNumber" by showing
			// the text component with reference "helpOn_orderNumber"
		: (event.eventType="onmouseleave")  // event is onmouseleave
			myForm["helpOn_"+componentRef].hide()  // hide the help on orderNumber

	End case

To open the web page with the help on orderNumber hidden, you can associate this function to the onload event of the web page:

exposed function hideOnLoad()
	webForm.helpOn_orderNumber.hide()

See also

Web Form
WebForm class
WebFormItem class

Properties

Command number	1734
Thread safe	✗
