WebAdmin

An embedded web server component, named WebAdmin, is used by 4D and 4D Server to provide a secured web access to specific management features such as the Data Explorer. You can connect locally or remotely to this web server from a browser or any web application and access the associated 4D application.

The WebAdmin handles the authentication of users with "WebAdmin" privileges, so that they can open administration sessions and access dedicated interfaces.

This feature can be used in 4D applications running headless as well as 4D applications running with interfaces.

Starting the WebAdmin web server​

By default, the WebAdmin web server is not launched. You need to configure the launch at startup, or (in versions with interface) launch it manually using a menu item.

Launch at startup​

You can configure the WebAdmin web server to be launched at 4D or 4D Server application startup (before any project is loaded).

  • If you use a 4D application with interface, select the File > Web Administration > Settings... menu item.

alt-text

Check the Launch WebAdmin server at startup option in the settings dialog box:

alt-text

  • Whether you use 4D application which is headless or not, you can enable the automatic startup mode using the following Command Line Interface argument:
open ~/Desktop/4D.app --webadmin-auto-start true

If the TCP port used by the WebAdmin web server (HTTPS or HTTP, depending on the settings) is not free at startup, 4D will try successively the 20 following ports, and use the first one that is available. If no port is available, the web server is not launched and an error is displayed or (headless application) logged in the console.

Start and stop​

If you use a 4D application with interface, you can start or stop the WebAdmin web server for your project at any moment:

Select the File > Web Administration > Start Server menu item.

alt-text

The menu item becomes Stop Server when the server is launched; select Stop Server to stop the WebAdmin web server.

WebAdmin Settings​

Configuring the WebAdmin component is mandatory in particular to define the access key. By default when the access key is not set, access via a URL is not allowed.

You can configure the WebAdmin component using the Web Administration settings dialog box (see below).

If you use a headless 4D application, you can use Command Line Interface arguments to define basic settings. You will have to customize the settings file to define advanced parameters.

Settings dialog box​

To open the Web Administration settings dialog box, select the File > Web Administration > Settings... menu item.

alt-text

The following dialog box is displayed:

alt-text

Launch WebAdmin server at startup​

Check this option if you want the WebAdmin web server to be automatically launched when the 4D or 4D Server application starts (see above). By default, this option is not checked.

Accept HTTP connections on localhost​

When this option is checked, you will be able to connect to the WebAdmin web server through HTTP on the same machine as the 4D application. By default, this option is checked.

Notes:

  • Connections with HTTP other than localhost are never accepted.
  • Even if this option is checked, when Accept HTTPS is checked and the TLS configuration is valid, localhost connections use HTTPS.

HTTP Port​

Port number to use for connections through HTTP to the WebAdmin web server when the Accept HTTP connections on localhost option is checked. Default value is 7080.

Accept HTTPS​

When this option is checked, you will be able to connect to the WebAdmin web server through HTTPS. By default, this option is checked.

HTTPS Port​

Port number to use for connections through HTTPS to the WebAdmin web server when the Accept HTTPS option is checked. Default value is 7443.

Certificate folder path​

Path of the folder where the TLS certificate files are located. By default, the certificate folder path is empty and 4D or 4D Server uses the certificate files embedded in the 4D application (custom certificates must be stored next to the project folder).

Debug log mode​

Status or format of the HTTP request log file (HTTPDebugLog_nn.txt, stored in the "Logs" folder of the application -- nn is the file number). The following options are available:

  • Disable (default)
  • With all body parts - enabled with body parts in response and request
  • Without body parts - enabled without body parts (body size is provided)
  • With request body - enabled with body part in request only
  • With response body - enabled with body part in response only

Access Key​

Defining an access key is mandatory to unlock access to the WebAdmin web server through a URL (access via a 4D menu command does not require an access key). When no access key is defined, no web client is allowed to connect through a URL to a web administration interface like the Data Explorer page. An error page is returned in case of connection request:

alt-text

An access key is similar to a password but not associated to a login.

  • To define a new access key: click the Define button, enter the access key string in the dialog box and click OK. The button label becomes Modify.
  • To modify the access key: click the Modify button, enter the new access key string in the dialog box and click OK.
  • To delete the access key: click the Modify button, let the access key area empty and click OK.

Enable access to Qodly Studio​

note

This option only appears if the Qodly Studio license is activated.

This option enables user access to Qodly Studio at the 4D application level. Note that you also need to enable the access at every project level.

WebAdmin Headless Configuration​

All WebAdmin settings are stored in the WebAdmin.4DSettings file. There is one default WebAdmin.4DSettings file per 4D and 4D Server application, so that it is possible to deploy multiple applications on the same host machine.

When running a 4D or 4D Server application headless, you can set and use the default WebAdmin.4DSettings file, or designate a custom .4DSettings file.

To set the file contents, you can use the WebAdmin settings dialog of the 4D application with interface and run it headless afterwards. The default WebAdmin.4DSettings file is then used.

Or, you can set a custom .4DSettings file (xml format) and use it instead of the default file. Several dedicated arguments are available in the Command line interface to support this feature.

The access key is not stored in clear in the .4DSettings file.

Example:

"%HOMEPATH%\Desktop\4D Server.exe" MyApp.4DLink --webadmin-access-key
	"my Fabulous AccessKey" --webadmin-auto-start true
	--webadmin-store-settings

Authentication and Session​

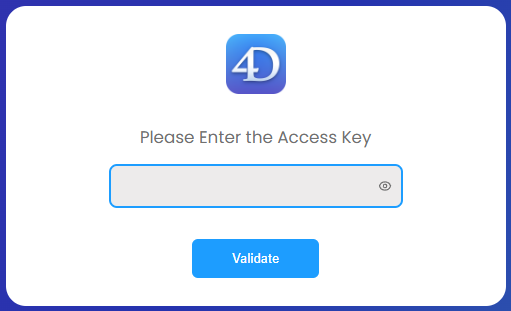

  • When a web management page is accessed by entering a URL and without prior identification, an authentication is required. The user must enter the access key in an authentication dialog box. If the access key was not defined in the WebAdmin settings, no access via URL is possible.

  • When a web management page is accessed directly from a 4D or 4D Server menu item (such as Records > Data Explorer or Window > Data Explorer (4D Server)), access is granted without authentication, the user is automatically authenticated.

Once the access is granted, a web session with the "WebAdmin" privilege is created on the 4D application. As long as the current session has "WebAdmin" privilege, the WebAdmin component delivers requested pages.
