Prerequisites
Software requirements
- 4D Developer Pro v17 R2 64-bit (Development)
- 4D Server v17 R2 64-bit (Deployment)
- Apple configurator 2 installed on your Mac (optional). Apple configurator 2 requires macOS 10.14 or later. Install this software if you want to automate app installation on your physical device.
Xcode 10.2 requires macOS 10.14 or later.
Using 17R6 with macOS 10.14.3
Xcode 10.2 requieres macOS 10.14 or later.
| Xcode | Swift | iOS | 4D | macOS |
|---|---|---|---|---|
| 12.5 | 5.4 | 14.6 | 18R6 beta | 11.0.1 |
| 12.4 | 5.3.2 | 14.4 | 18R6 | 10.15.4 |
| 12.2 | 5.3 | 14.2 | 18R5 & 18.3 | 10.15.4 |
Version history
| Xcode | Swift | iOS | 4D | macOS |
|---|---|---|---|---|
| 12.0 | 5.3 | 14.0 | 18R4 | 10.15.4 |
| 11.5 | 5.2.4 | 13.5 | 18R3 | 10.15.2 |
| 11.4 | 5.2 | 13.4 | 18.2 | 10.15.2 |
| 11.3.1 | 5.1.3 | 13.3 | 18.1 | 10.14.4 |
| 11.3.1 | 5.1.3 | 13.3 | 18R2 | 10.14.4 |
| 11.2 | 5.1 | 13.2 | 18 | 10.14.4 |
| 10.2.1 | 5.0 | 12.2 | 17R6 | 10.14.4 |
| 10.2 | 4.2.1 | 12.2 | 17R5 | 10.14.3 |
| 10.1 | 4.2.1 | 12 | 17R4 | 10.13.6 |
| 10.0 | 4.2 | 12 | 17R3 | 10.13.6 |
| 9.4 | 4.1.2 | 11.4 | 17R2 | 10.13.2 |
| 9.3.1 | 4.1 | 11.3 | 17R2 | 10.13.2 |
Due to apple swift language abi instability, you can not use the standard 4D 17R4 with Xcode 10.2.
| Android Studio | 4D | Windows |
|---|---|---|
| 4.1.2 | 18R6 beta | Windows 10 64-bit |
Hardware requirements
- 8GB of RAM (Minimum recommended)
Configuration

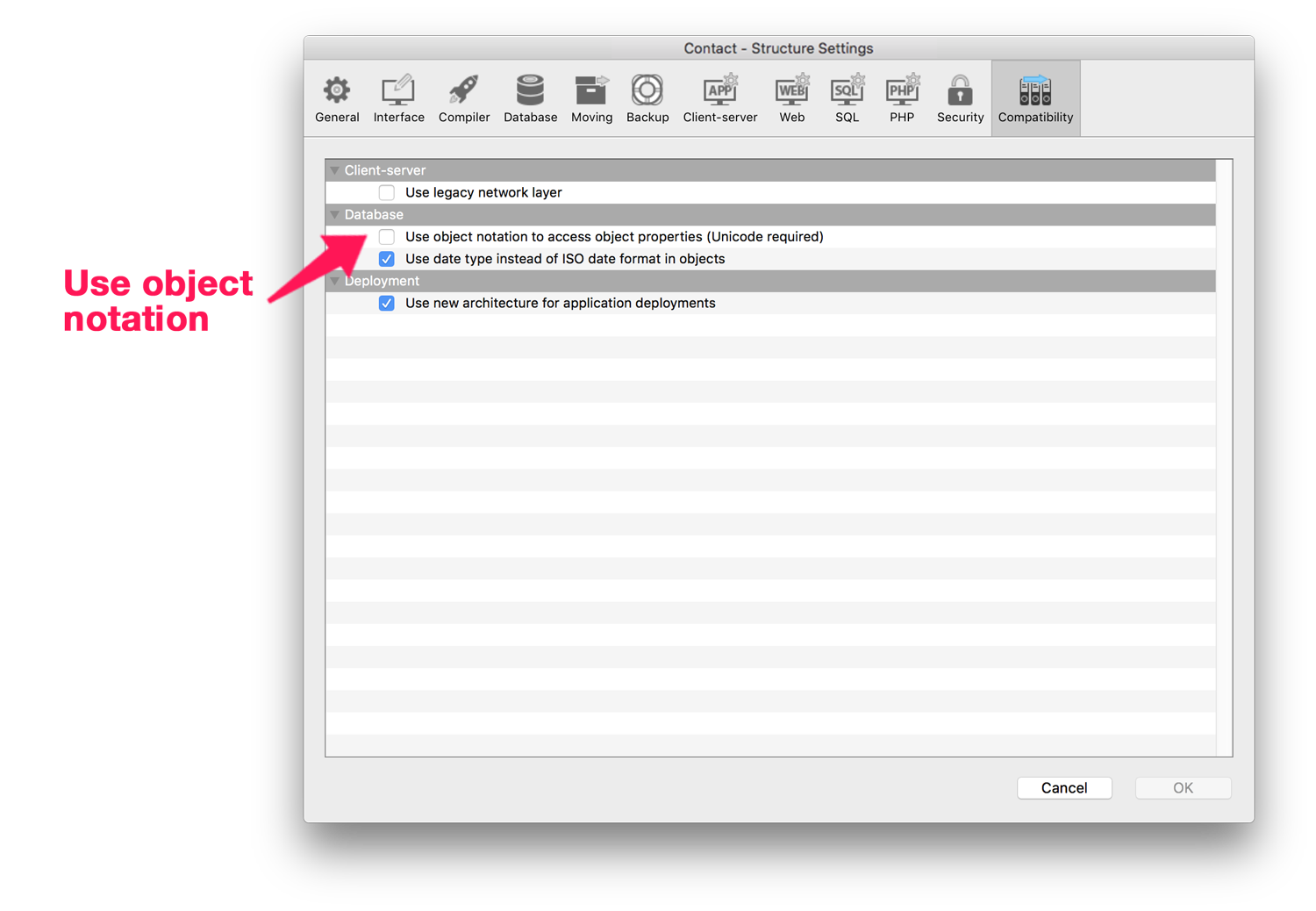

- In the 4D Database Settings, display the Compatibility page and check Use object notation to access object properties (Unicode required).
- Your HTTP and HTTPS ports must be well-configured. HTTPS is mandatory for 4D for iOS deployment.

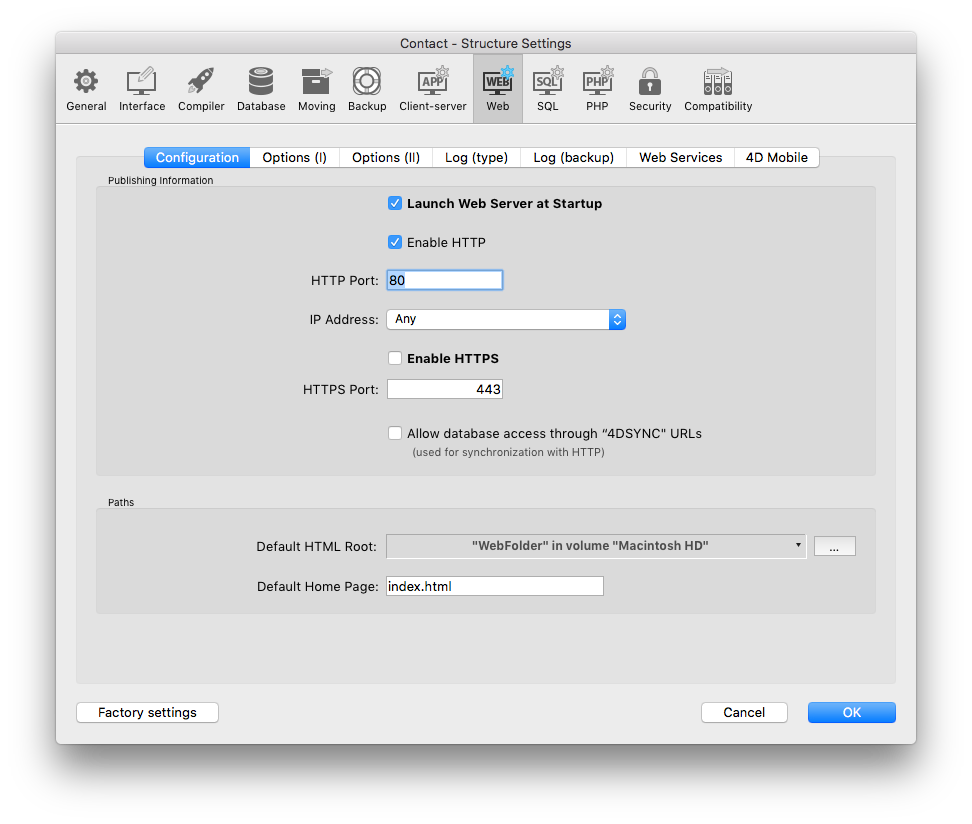

- Your Web Server must be started. It's available from the Run menu:
